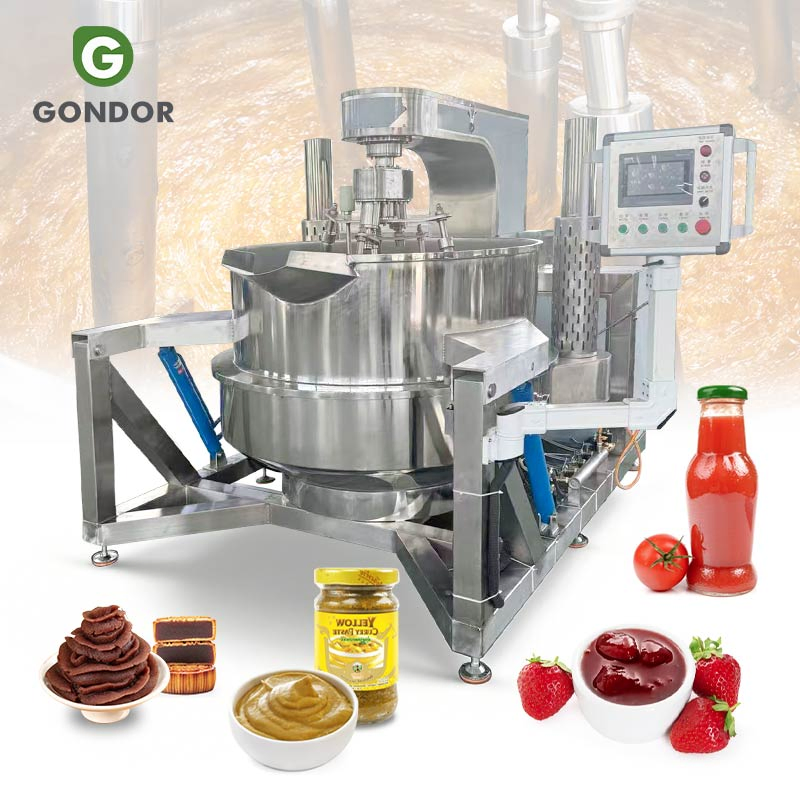

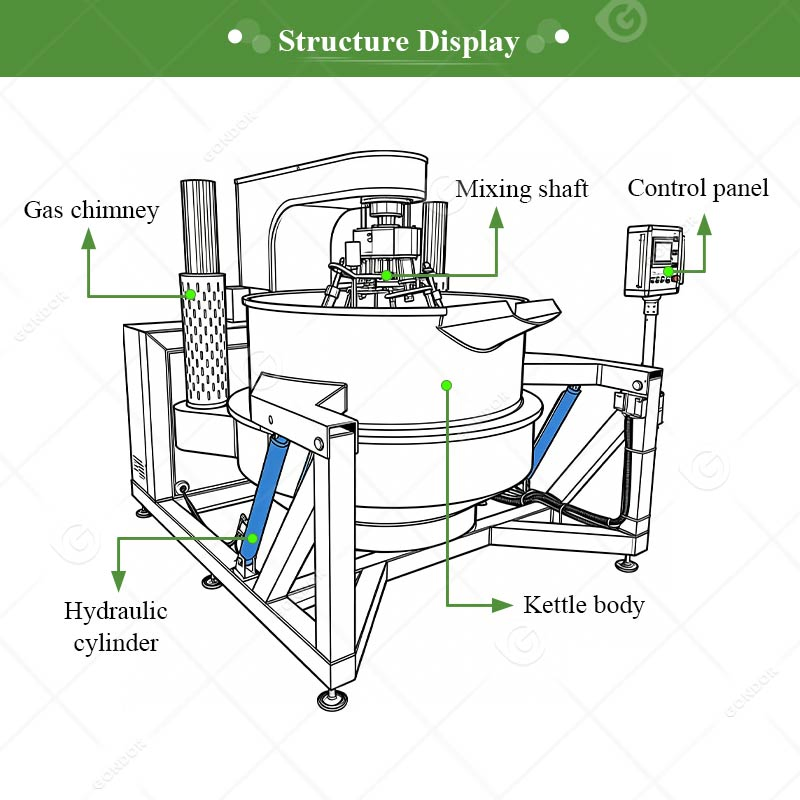

Industrial Small Batch Food Jacket Steam Induction Syrup Nougat Cooking Kettle Mixer Machine for Sale

Product Description

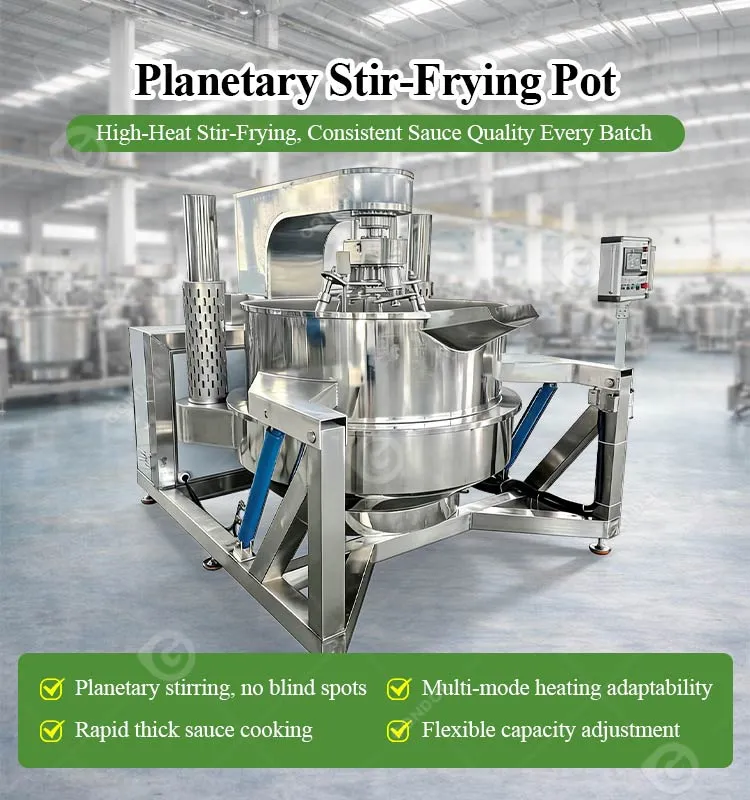

Planetary Stir-Frying Pot banner

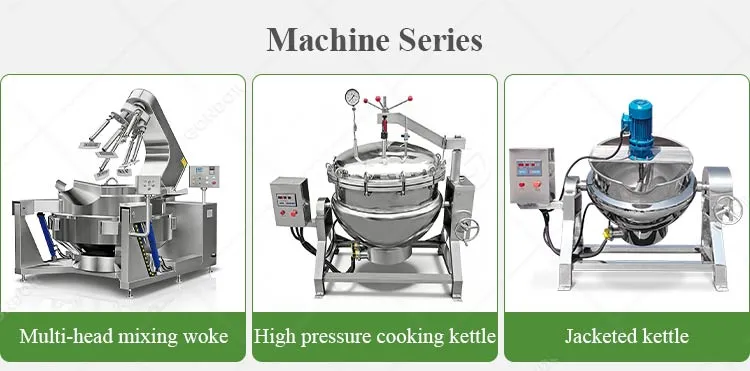

Planetary Stir-Frying Pot showcase
Product Description

The Planetary Stir-Frying Pot is a professional high-temperature cooking machine designed for efficient, uniform, and stable thermal processing. Featuring planetary mixing with no dead angles and precise temperature control, it ensures even heating while preventing sticking or scorching. With multiple heating options, intelligent control, and hydraulic tilting discharge, this machine delivers consistent results, reduces labor intensity, and improves overall production efficiency in commercial food processing.

Application
  • The planetary stir-frying pot is suitable for food processing plants, central kitchens, commercial kitchens, catering factories, seasoning manufacturers, and industrial food production facilities that require high-temperature cooking and concentration.
  • The machine can be used to process a wide range of products, including sauces (chili sauce, hot pot base, beef sauce, curry sauce), fillings (mooncake filling, tangyuan filling), as well as syrups, jams, fruit pastes, candied fruit concentrates, and other high-viscosity or high-solid food materials.
Key Features
  • Planetary Mixing, No Dead Angles – Dual rotation (self + planetary) scrapes the pot wall and bottom for uniform cooking and less scorching.
  • Multiple Heating Options – Choose gas, electromagnetic, thermal oil, or steam heating to match your process and energy preference.
  • Precise Temperature Control (Up to 300°C) – Stable heat management improves consistency for high-temperature stir-frying and concentration.
  • Food-Grade Stainless Steel Build – Hygienic, corrosion-resistant, and high-temperature resistant for long-term industrial use.
  • Hydraulic Tilting Discharge – One-touch tilting empties the pot quickly with minimal residue, saving time and labor.
  • VFD Speed Adjustment – Variable-speed stirring runs smoothly from low to high RPM for better control across different viscosities.
Technical Specifications
Semi-automatic Planetary Mixing Pot
Heating method Thermal Oil / Gas / LPG / Methanol / Diesel / Electromagnetic
Model Pot Diameter (mm) Overall Dimensions (mm) Power (kW) Pot Depth (mm) Stirring Power (kW) Gas Power (kW) Induction Power (kW)
100L 800 1200×950×2200 24 400 1.5 1.5 36
200L 900 1300×1050×2200 24 450 1.5 1.5 /
300L 1000 1400×1150×2200 24/36 500 1.5 1.5 /
400L 1100 1500×1250×2200 36 550 2.2 2.2 48
500L 1200 1600×1350×2200 36/48 600 / / /
Full-automatic Planetary Mixing Pot
Heating method Thermal Oil / Gas / LPG / Electromagnetic / Methanol
Model Pot Diameter (mm) Overall Dimensions (mm) Power (kW) Pot Depth (mm) Stirring Power (kW) Gas Power (kW) Induction Power (kW)
100L 800 1150×1300×1700 24 400 1.5 1.5 36
200L 900 1250×1400×1700 24 450 2.2 2.2 /
300L 1000 1350×1500×1800 24/36 500 2.2 2.2 /
400L 1100 1450×1600×1800 36 550 2.2 2.2 48
500L 1200 1550×1700×1900 36/48 600 3 3 /
Product Details

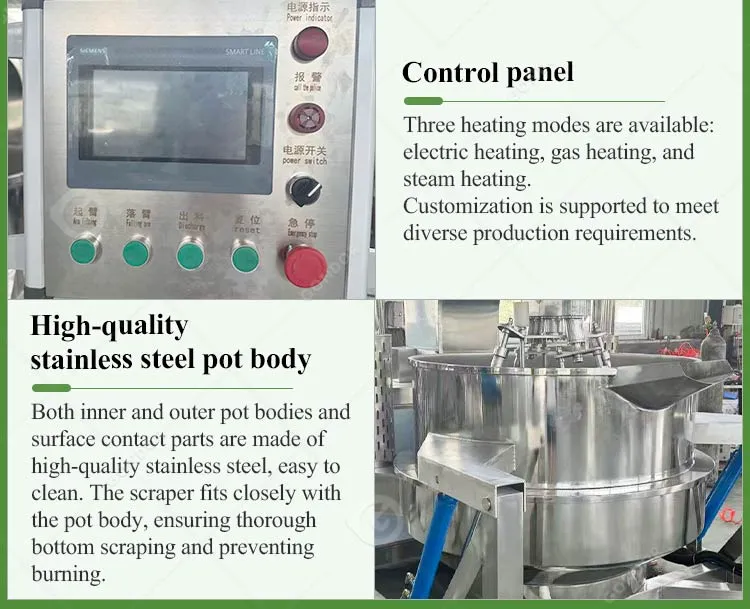

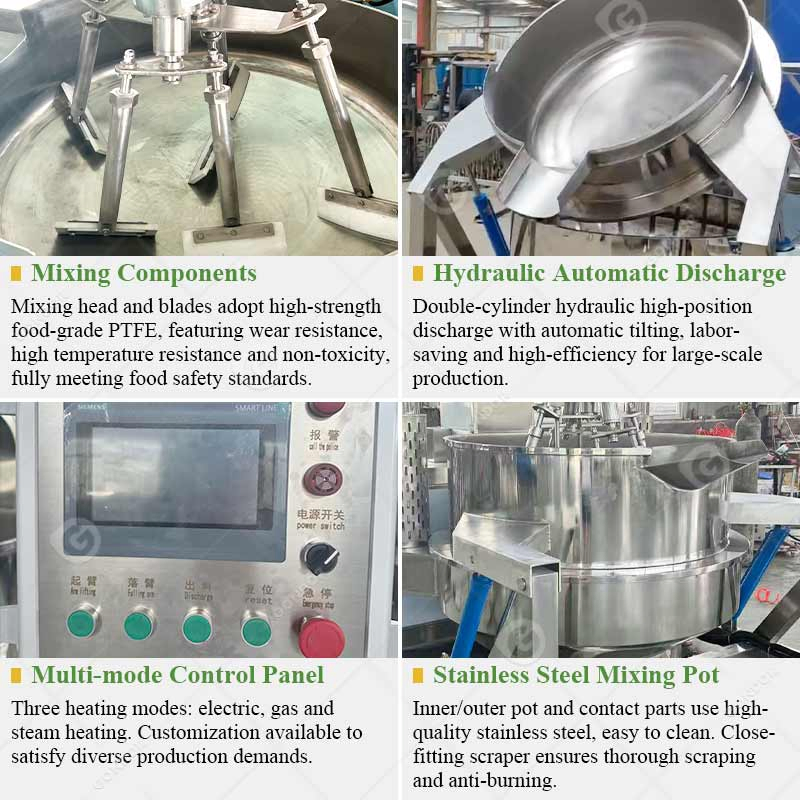

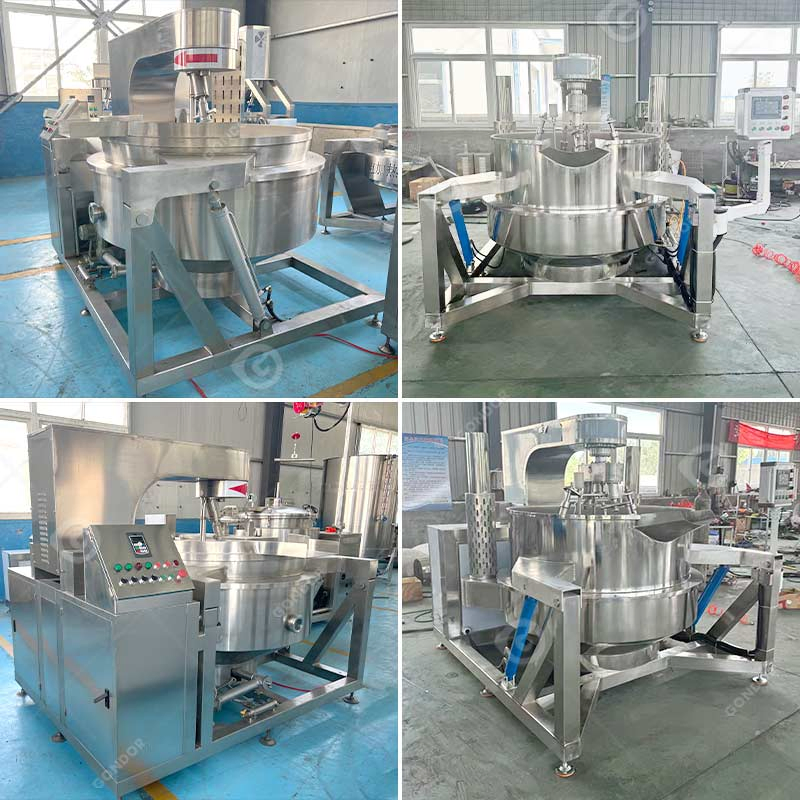

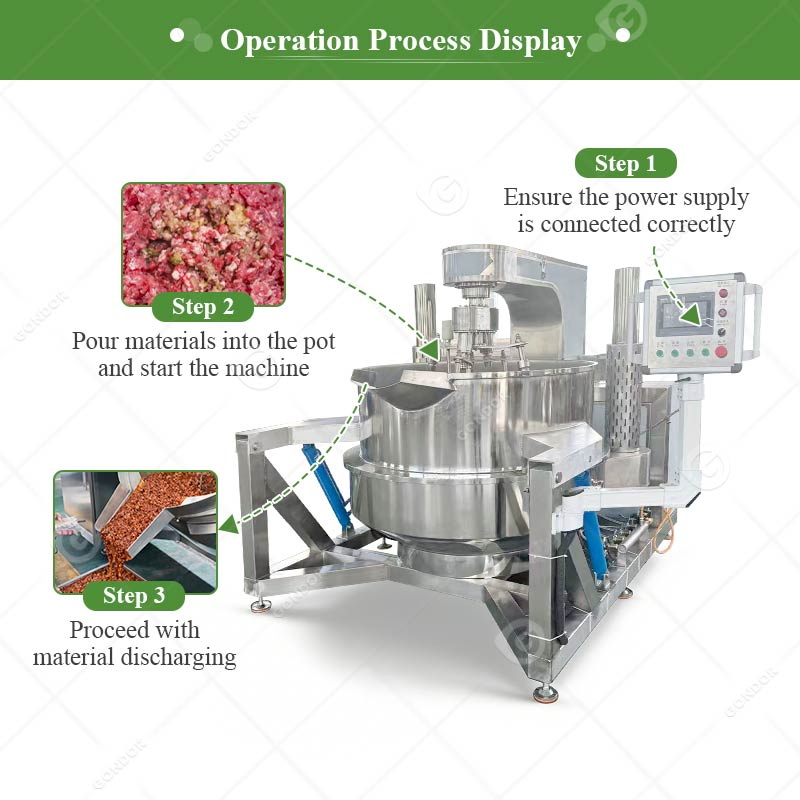

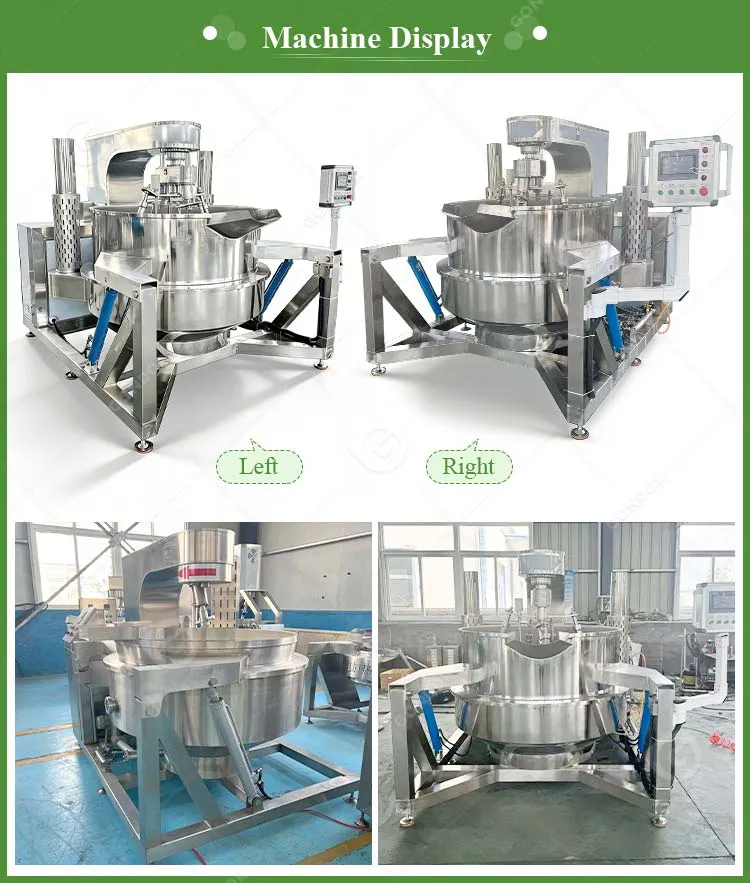

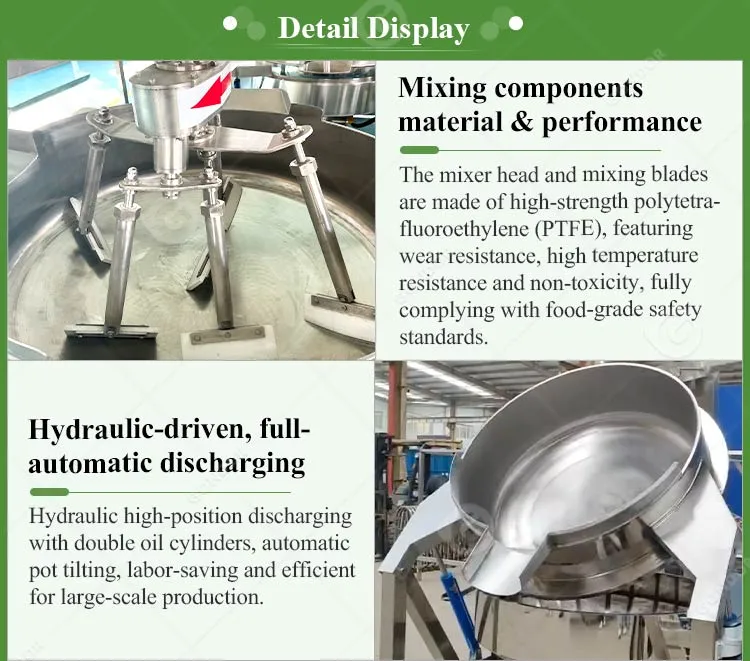

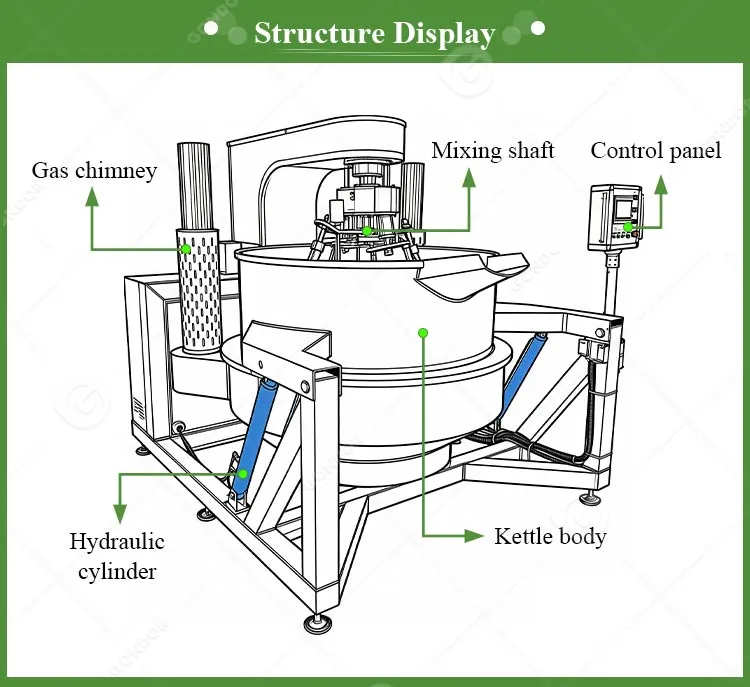

Planetary Mixer Detail 1 Planetary Mixer Detail 2 Planetary Mixer Detail 3 Planetary Mixer Detail 4 Planetary Mixer Detail 5 Planetary Mixer Detail 6

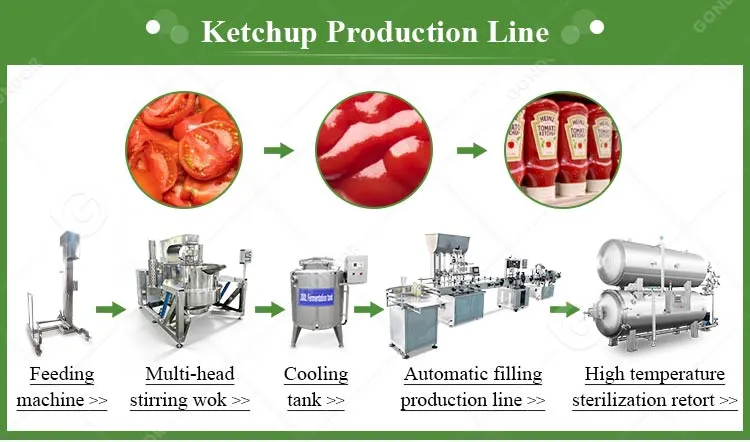

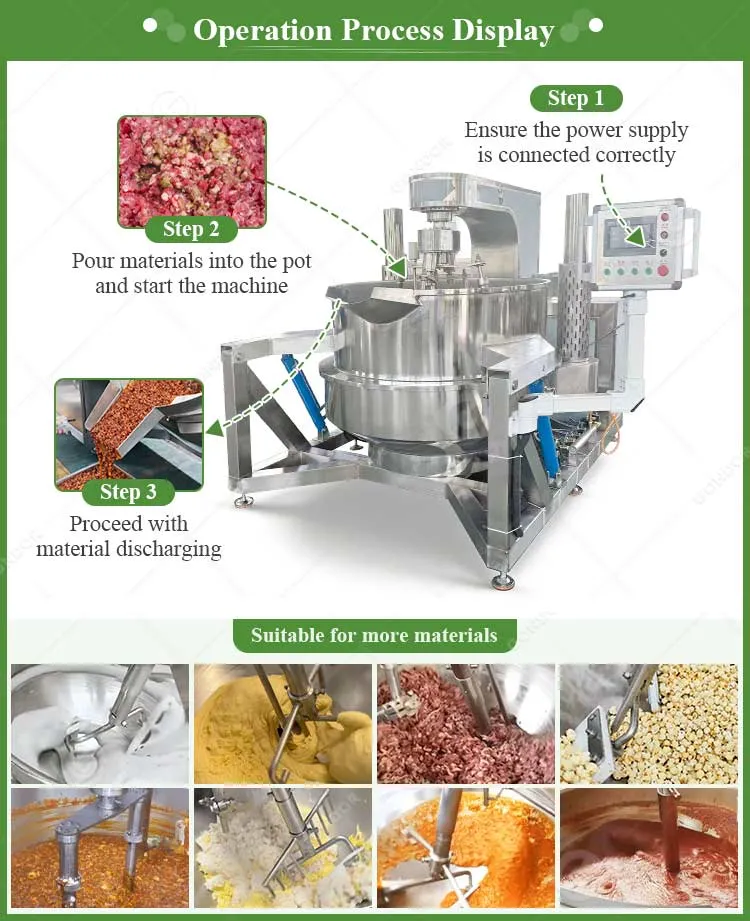

Planetary Mixer Operation Showcase
Packaging & Shipping

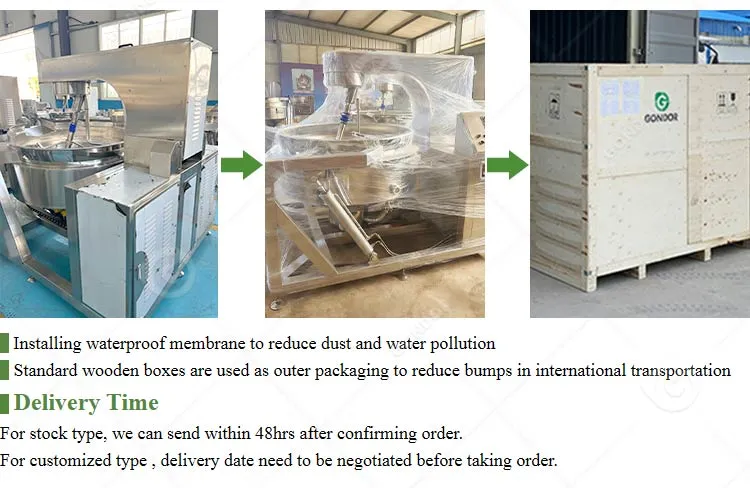

Planetary Mixing Pot Packaging
Manufacturing Facility

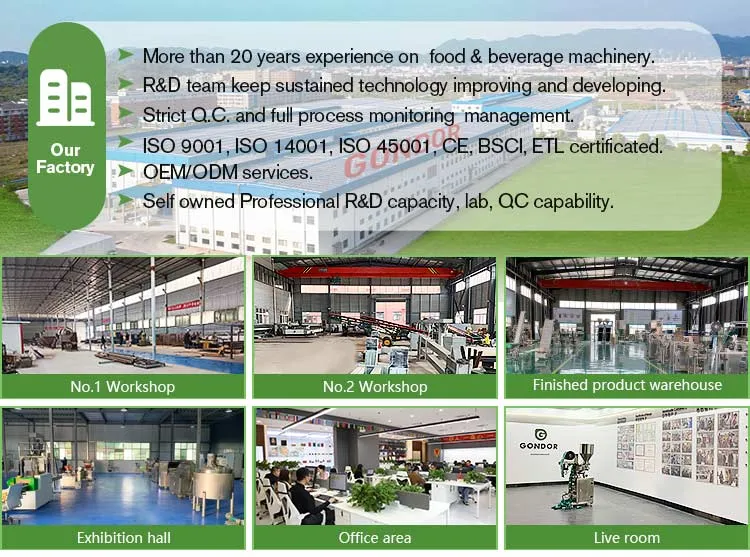

Factory Workshop 1 Factory Workshop 2 Factory Workshop 3
Our Services
Professional Services International Customer Service
  • 24-hour communication service.
  • Fast logistics will provide you a smooth delivery service.
  • 12 months warranty and lifetime technical support.
  • New design or product recommendations.
  • Attend international Fairs to negotiate with customers face to face.
  • Offer official invitation if you come to China.
  • Reception service to help you book a good hotel.
Frequently Asked Questions
How does the planetary mixing system prevent scorching and sticking?
The agitator runs with planetary rotation + self-rotation and scrapes the pot wall/bottom closely, reducing dead zones and keeping heating more uniform.
What heating methods are available?
Common options include electromagnetic heating, gas heating, thermal oil heating, and steam heating. We can recommend the best option based on your material and local energy conditions.
Is the stirring speed adjustable for different viscosities?
Yes. With VFD control, the stirring speed can be adjusted smoothly from low to high to match different product thickness and cooking stages.
Can the machine be customized for different capacities or pot sizes?
Yes. Capacity, pot volume, heating type, voltage, and automation options can be customized to match your production requirements.
Is it easy to clean after processing sticky sauces or fillings?
Yes. The detachable mixing parts and smooth stainless-steel surface make cleaning more convenient, and the scraper helps reduce residue on the pot wall and bottom.
What kind of warranty and technical support do you provide?
We offer a 12-month warranty along with lifetime technical support to ensure your production line runs smoothly and reliably.
