Know About The Product
Model: 8225-201
Basic Features
- 2 cooking zones
- Auto Pan detection (Induction)
- Cooking time programmer 0-99 minutes
- Power Booster function (Induction)
- Independent programmer of each cooking zone
- Residual heat indicators
- Safety blocking / Child Lock
- Auto power rate / temperature adjustment
- Electric safety function against overheating
- Dry burning protection
- Over/low voltage detection and protection
- Automatic turn-off in case of non-use
Special Features

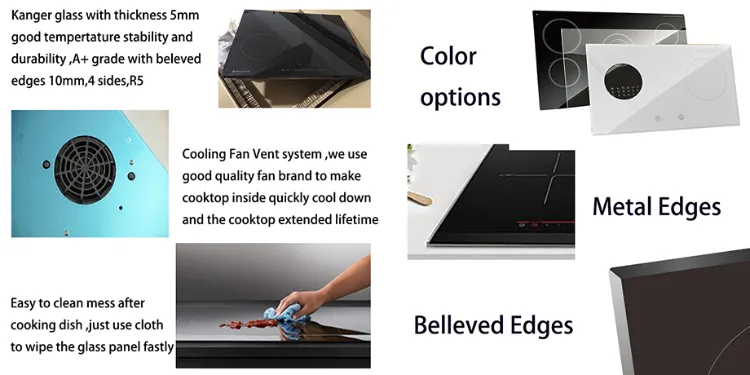

- Bevelled glass
- 2 rings radiant heater

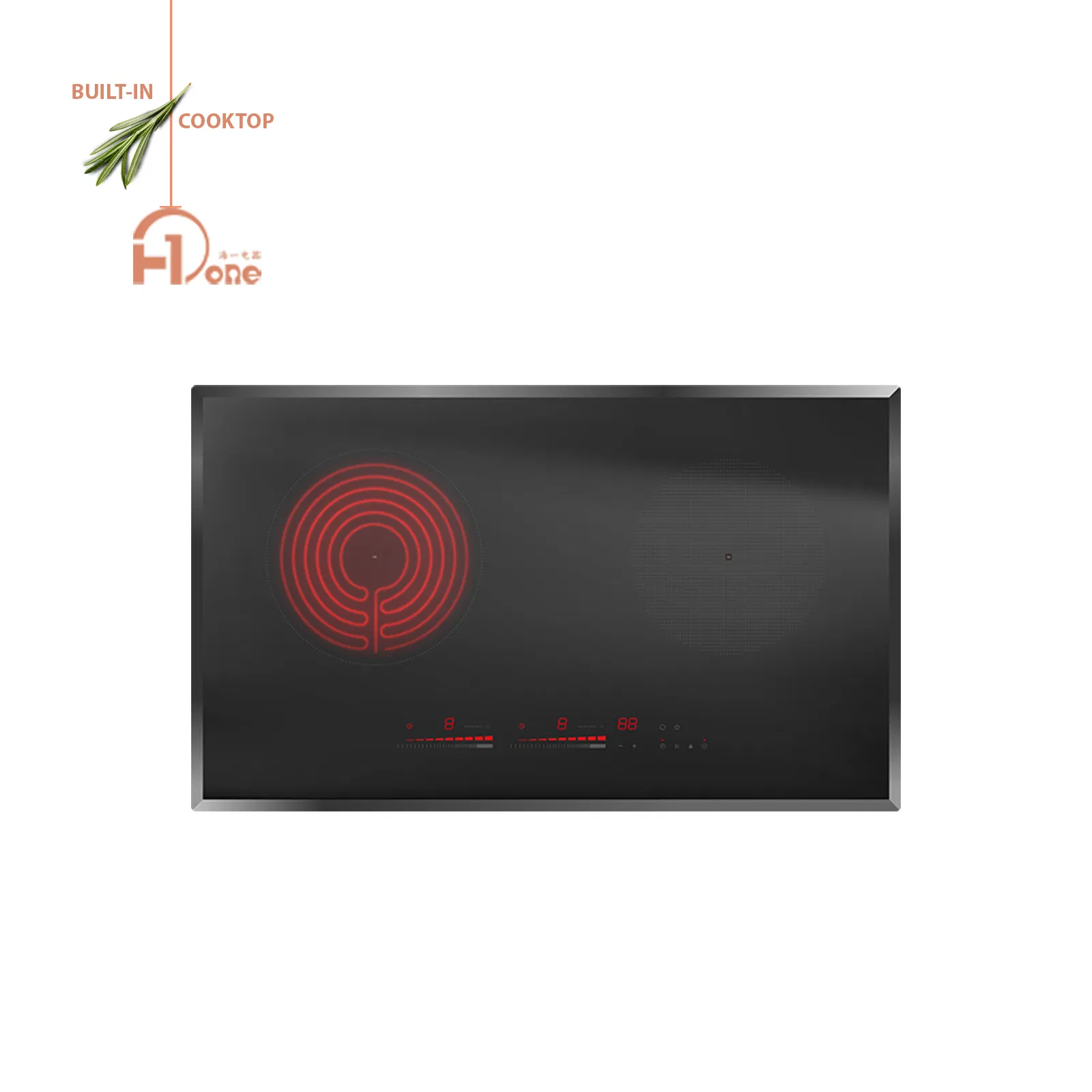

- 730*430mm horizontal induction hob

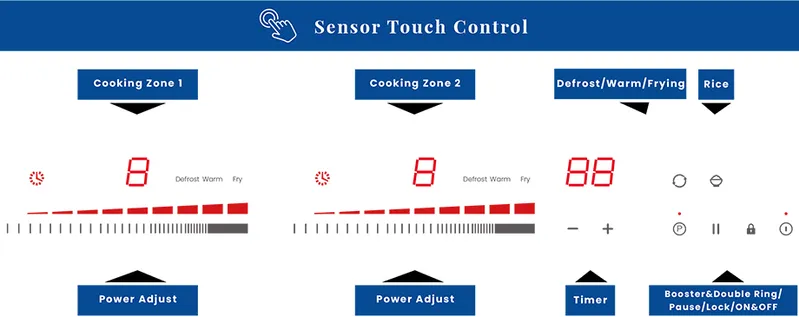

- Touch control slider
Technical Specifications
| Category |
Details |
| Left Infrared Zone |
Nominal Power: 1100W/2200W, Diameter: φ160mm/230mm, 2 rings |
| Right Induction Zone |
Nominal Power: 2300W/3000W, Diameter: φ210mm |
| Electric Connection |
Connection: 220~240 V, 50-60Hz |
| Power Rating |
5200W |
Shipping Information
Dimensions & Weight
- Product size: 730 x 430 x 55 mm
- Cutout size: 680 x 380 mm
- Carton Size: 800(L) * 500(W) * 115(H) mm
- Gross Weight: 12.824 Kg
Quantity in Container
- 20FT: 500 pcs
- 40FT: 1100 pcs
- 40HC: 1300 pcs

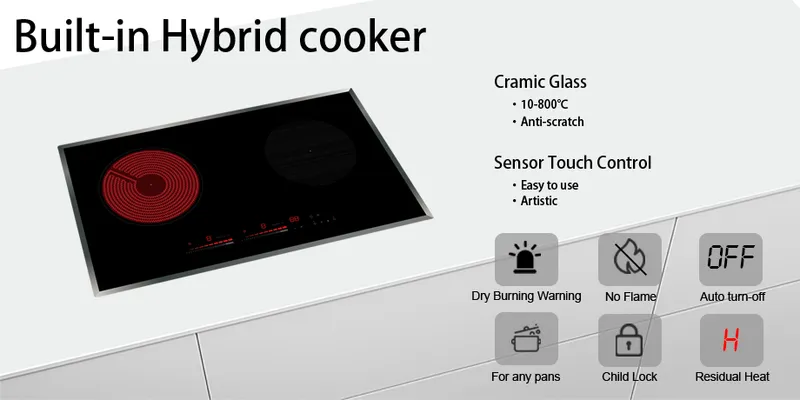

Induction Mixed Infrared Heating System

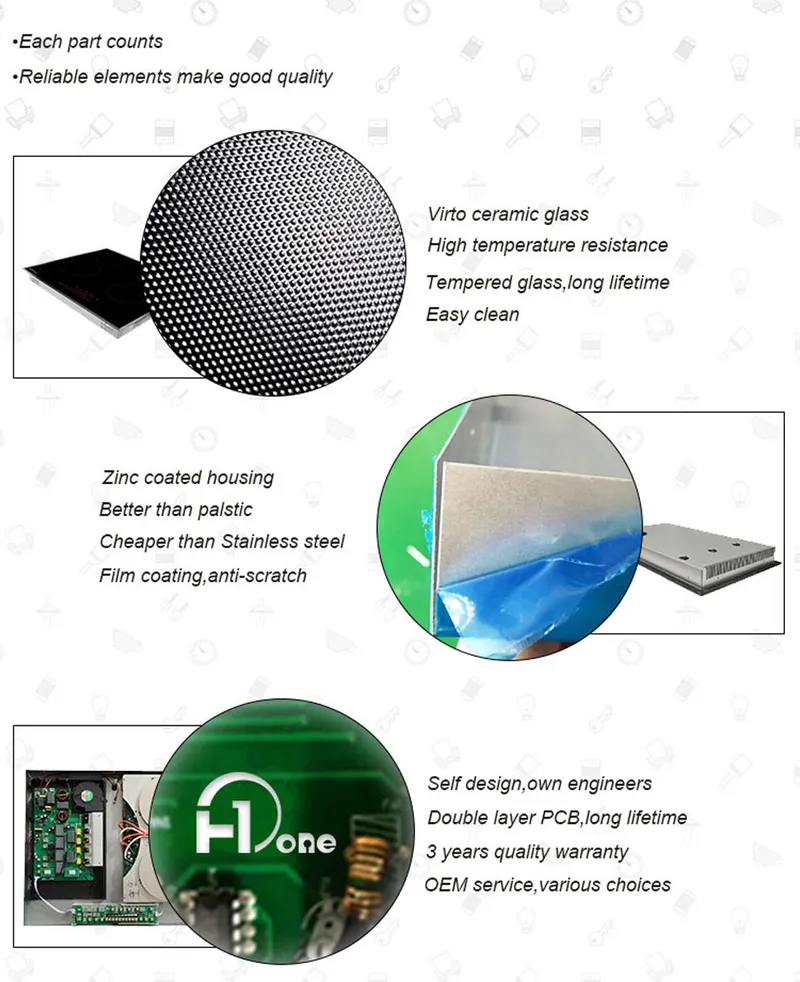

Each Part Accounts
About The Manufacturer
The manufacturer is one of the national high-tech enterprises, founded in 1993, located in China. We are a premier OEM/ODM supplier.
Our team includes dedicated product design engineers, electronic design engineers, product testing engineers, full production lines, reliable material suppliers, and an experienced sales support team. With these strong capabilities, we can supply and support our products all over the world.
Why Choose Us?
ODM Capability
- Original Materials Options: Customize housing, plates, and other components.
- Develop Your Own Brand: Utilize your custom design drawings, cartons, user manuals, and brand ideas.
- Function Updates: Adapt and improve features based on your specific business requirements.
- Market Customization: Manufacture in strict accordance with your local market regulations and trends.
Sales & After-Sales Service
- Comprehensive support whether you are sourcing plates or resolving operational issues.
- At least a 3-year quality warranty is provided on all products.
- Professional engineering team stands ready to settle any technical challenges you might face.
ODM Accept
Frequently Asked Questions
What is the advantage of a mixed induction and ceramic heating system?
The system combines the rapid speed and energy efficiency of induction cooking on one side with the versatility of infrared ceramic cooking on the other. This allows you to utilize induction-compatible cookware on the right zone while using any standard heat-resistant cookware (such as glass, ceramic, or copper) on the left infrared zone.
What are the required cutout dimensions for installation?
The unit has a product dimension of 730 x 430 x 55 mm. For proper flush or built-in installation, your countertop cutout needs to measure 680 x 380 mm.
How does the dry burning protection safety feature work?
The dry burning protection automatically detects when a pot or pan is heated empty or when temperatures reach abnormal levels. The system will auto-adjust or shut down power to prevent damage to the hob surface, cookware, and surrounding environment.
Can I set timers for both cooking zones simultaneously?
Yes, both the left infrared zone and the right induction zone feature independent timers that can be programmed separately from 0 to 99 minutes.
What options do you offer for custom brand development (ODM)?
We offer extensive ODM options including housing and plate material modifications, customized brand logos, custom-designed packaging/cartons, personalized user manuals, and customized control interfaces tailored to your regional market requirements.
